Brake Pedal RPBB003

En stock
Reference: RPBB003

225,00 € (incl. VAT)

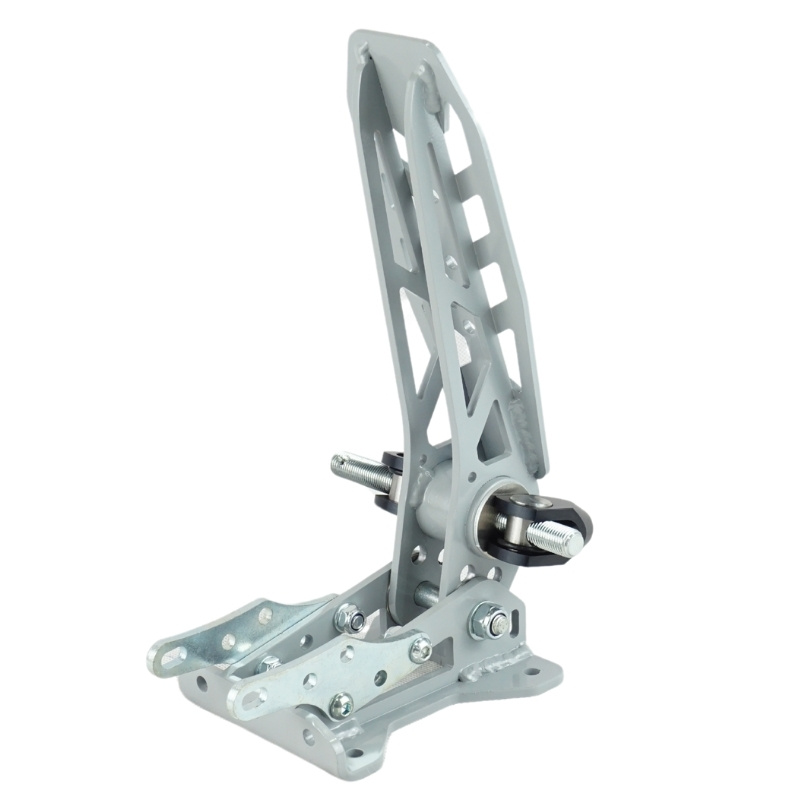

The Brake Pedal RPBB003 from Racingpedalboxes presents an optimum design to be used in buggys, car cross, speeddown etc.

The pedal is manufactured with steel welded parts, with a lightweight design to improve the stiffness – weight ratio.

Custom product

Configure your product by selecting the accessories you need

1. Front brake master cylinder / bomba de freno delantera

2. Rear brake master cylinder / bomba de freno trasera

3. Brake remote adjuster / Regulador de cable remoto

Total: 225,00 € (incl. VAT)

In stock

SKU: RPBB003 Categories: ,

Description

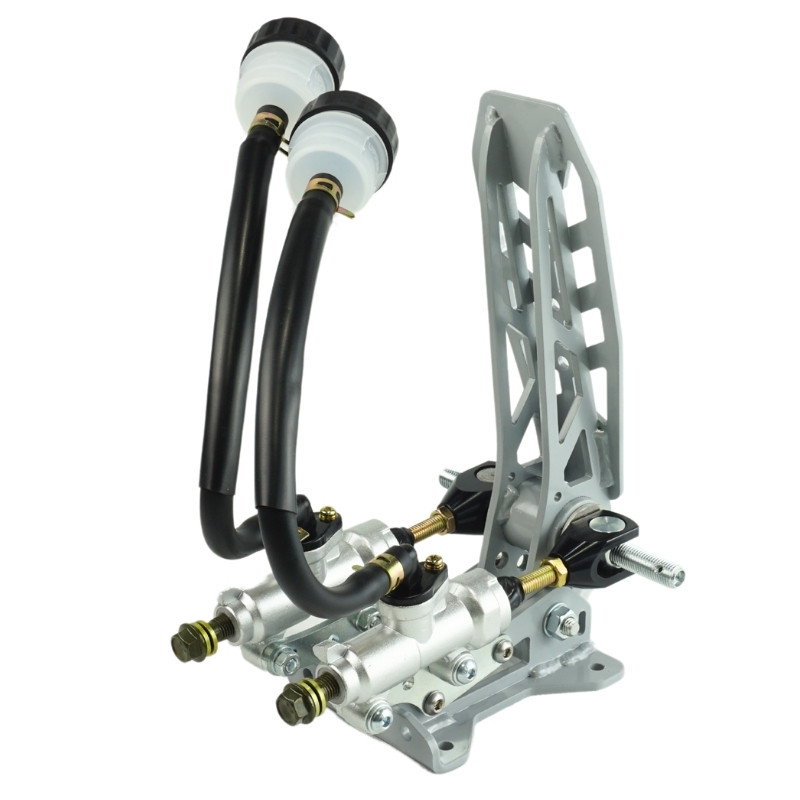

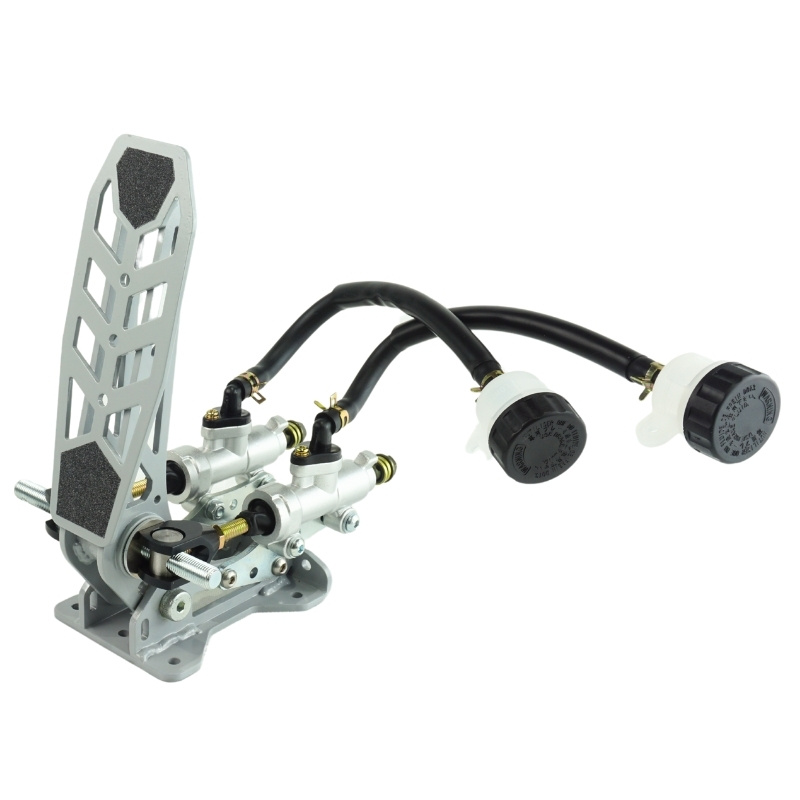

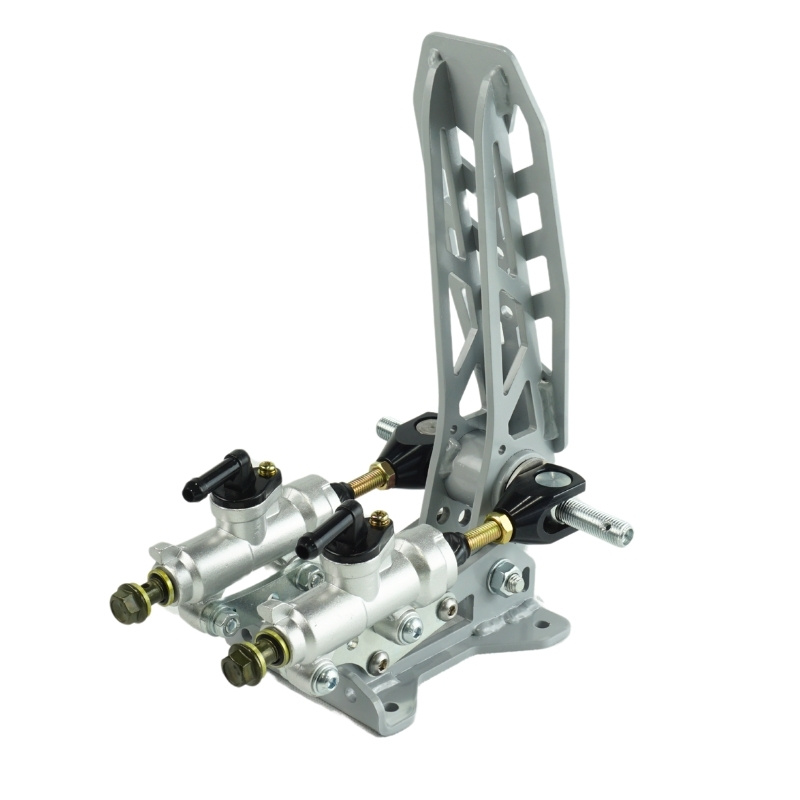

-The brake pedal has double master cylinders and a balance bar, to regulate the front and rear braking.

-The pedals have a wide surface to improve the driving and ergonomics.

-The balance bar (included with the pedal) is 7/16”- 20 UNF thread to provide the maximum stiffness. The master cylinders connections are M8, for motorcycle type master cylinders.

– Motorcycle master cylinder assembly points should be between 40-45mm.

-The pedal ratio is 5:1.

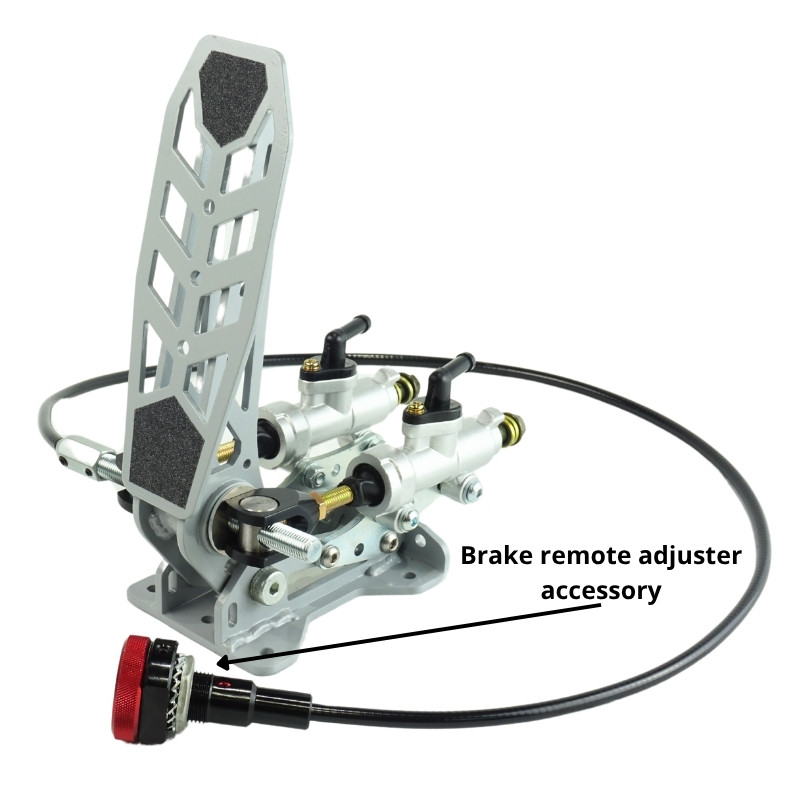

-Possibility to assemble Brake remote adjuster (7/16 UNF) (ref. RPBAB03) to control the brake balance from the cockpit.

-The weight of the pedal is 1,3 kg without master cylinders and 1.8 kg with master cylinders.

–Pedal setting is made on the cabin floor with four 6mm metric screws.

-The pedal has anti-slip surface.

-Master cylinders are sold separately.

-All the components have anticorrosion coating to allow the maximum durability.

Additional information

Weight 2 kg
