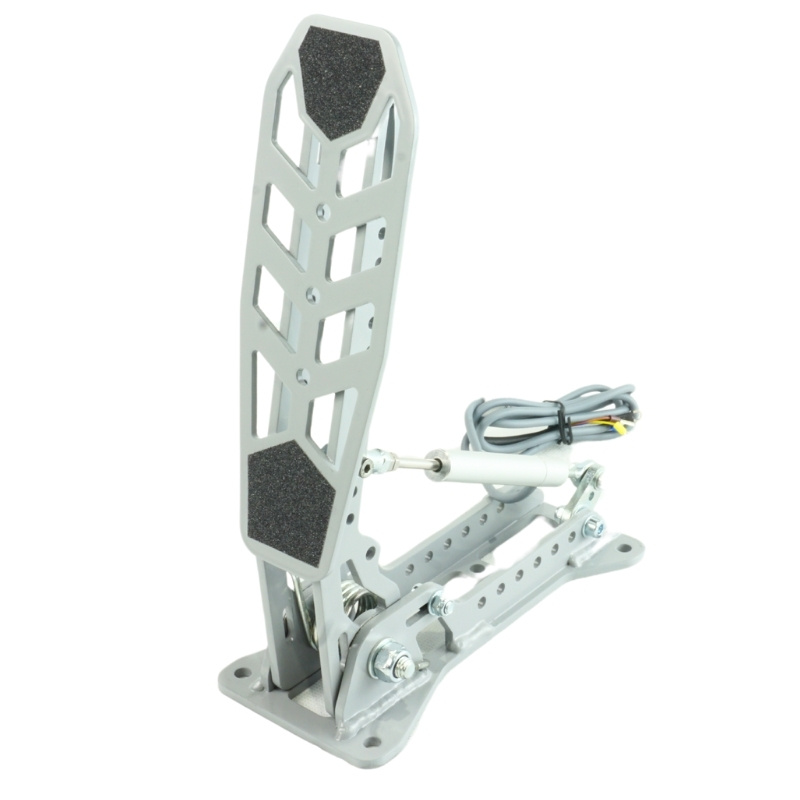

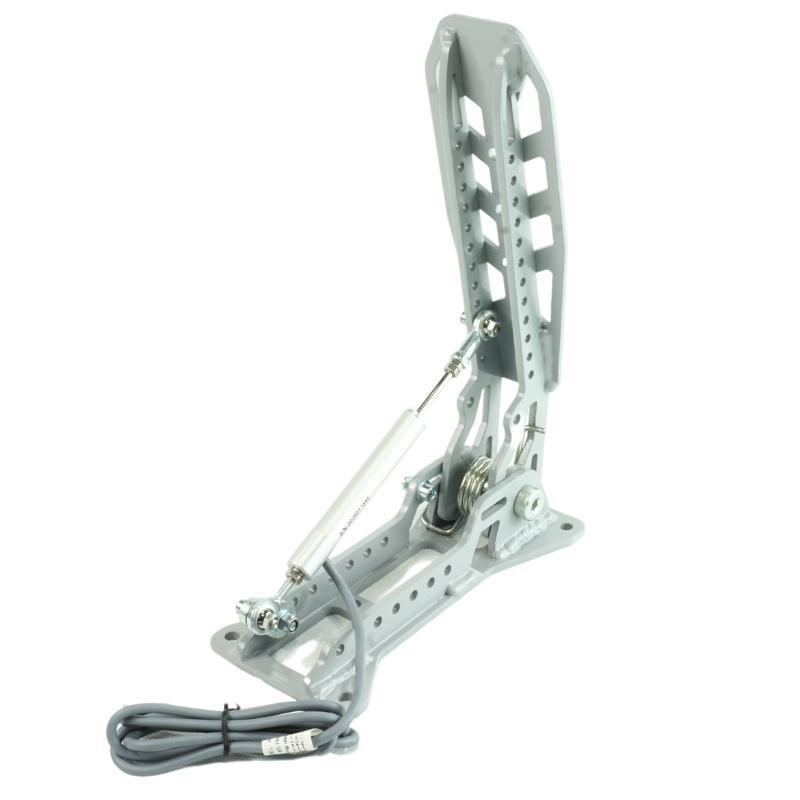

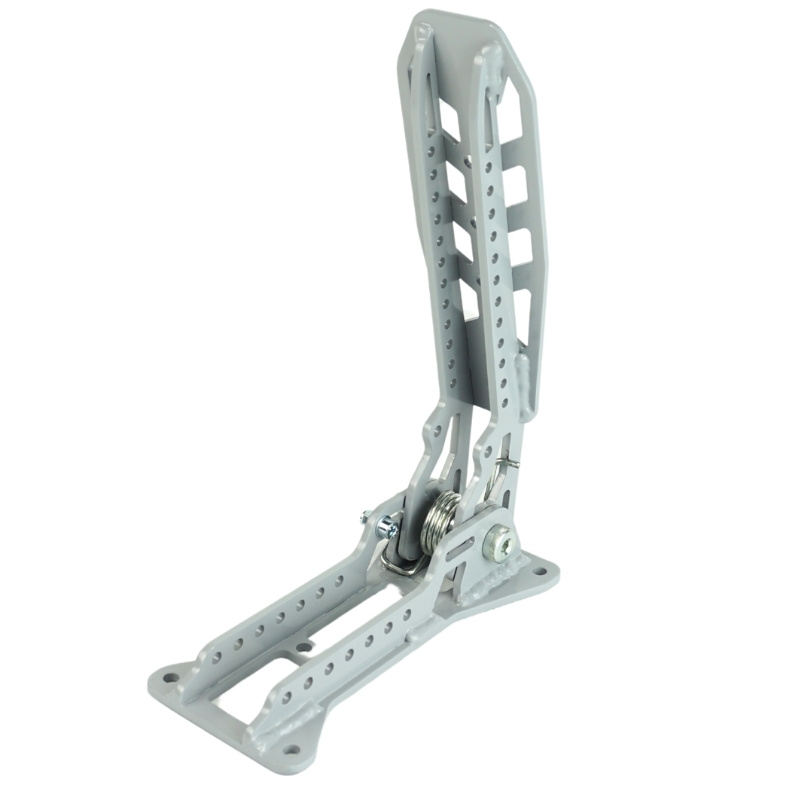

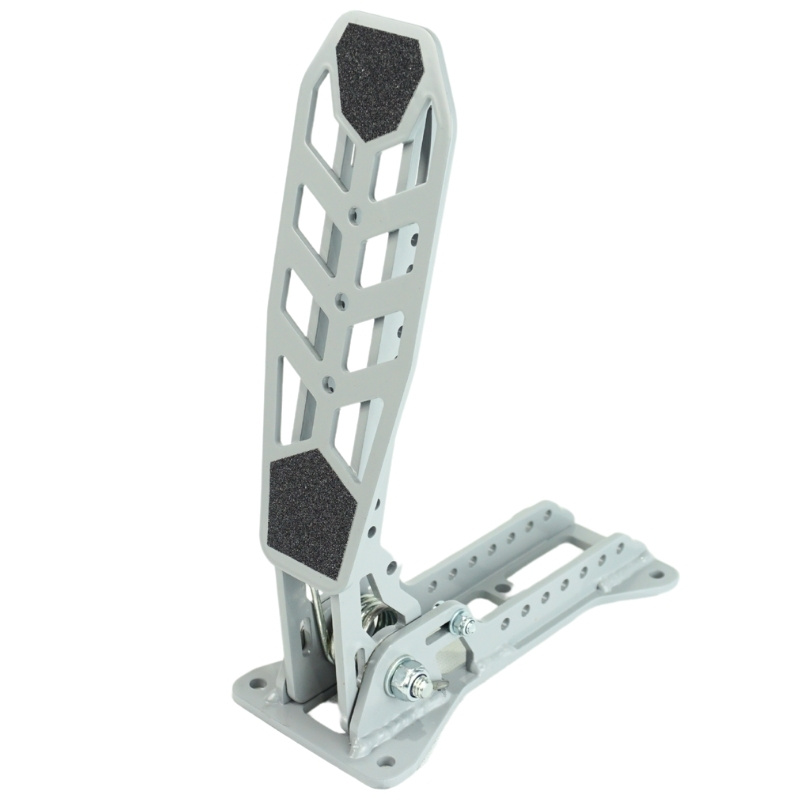

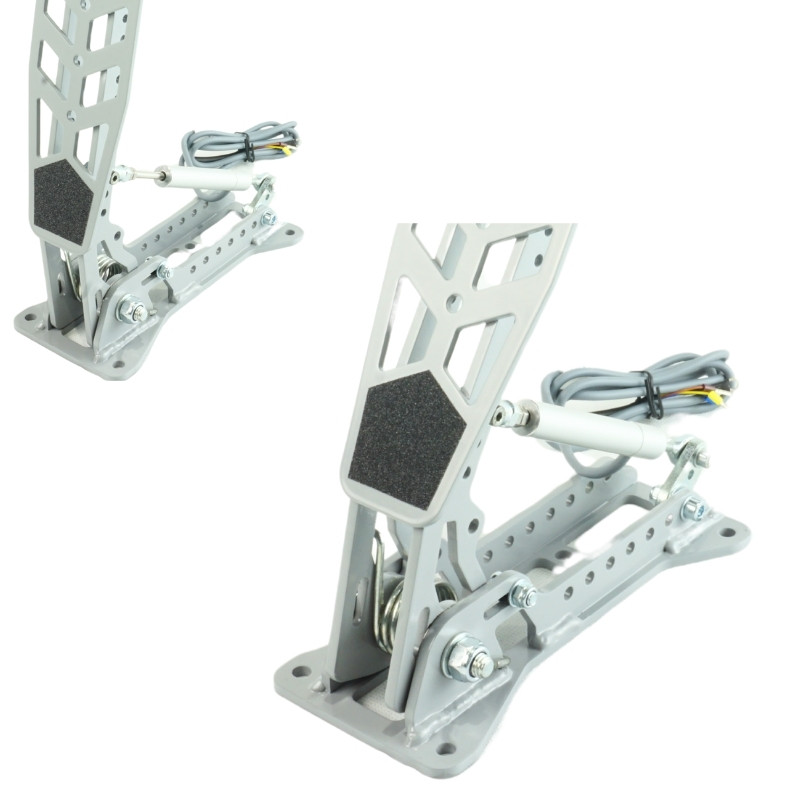

Electronic throttle pedal RPBT003

Description

-The throttle pedal has multiple fitting points for different types of linear displacement sensors.

-Suitable for Linear sensor KPM12J (SKU: RPBAC11).

-The maximum length of extended sensor must be 210 mm, and minimum extended length 120 mm.

-Sensors displacement must be between 25-40mm.

-Sensor connections are Ø4mm.

-The pedals have a wide surface to improve the driving and ease the pedal combinations.

–Pedal rotation angle is adjustable with a maximum angle of 22 degrees.

-The weight of the pedal is 1,05kg.

–Pedal setting is made on the cabin floor with four 6mm metric screws.

-The pedal has anti-slip surface.

-The linear sensors are sold separately.

-All the components have anticorrosion coating to allow the maximum durability.
