Pedalbox Kit Car B

Description

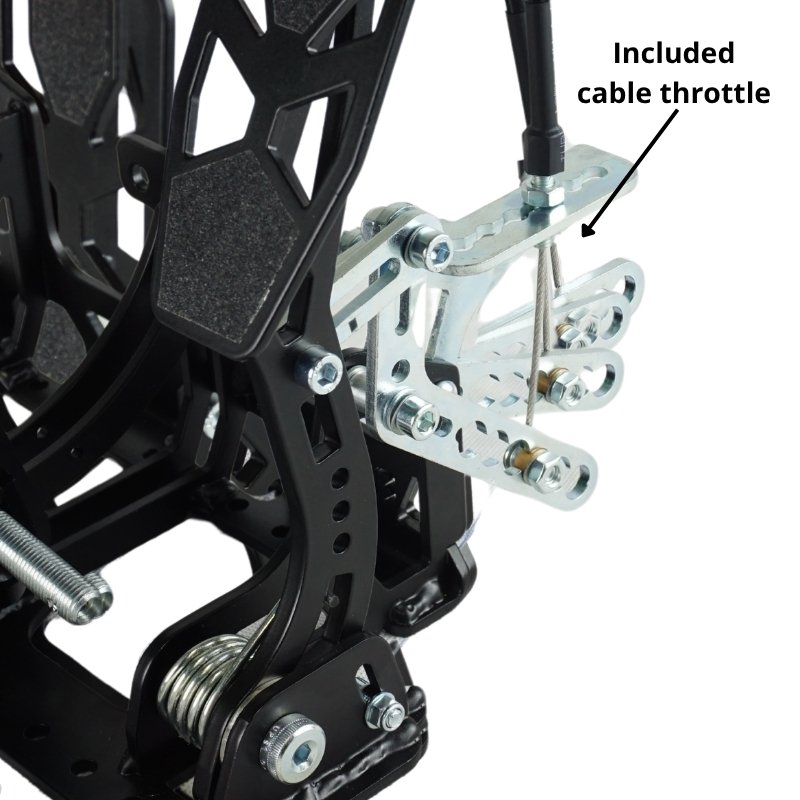

-The throttle pedal has an adjustable cable mechanism (included with the pedalbox). The pedal rotation angle and the wire stroke are adjustable.

-Possibility to assemble Electronic sensor RPB0001 (ref. RPBAC09) to have electronic throttle.

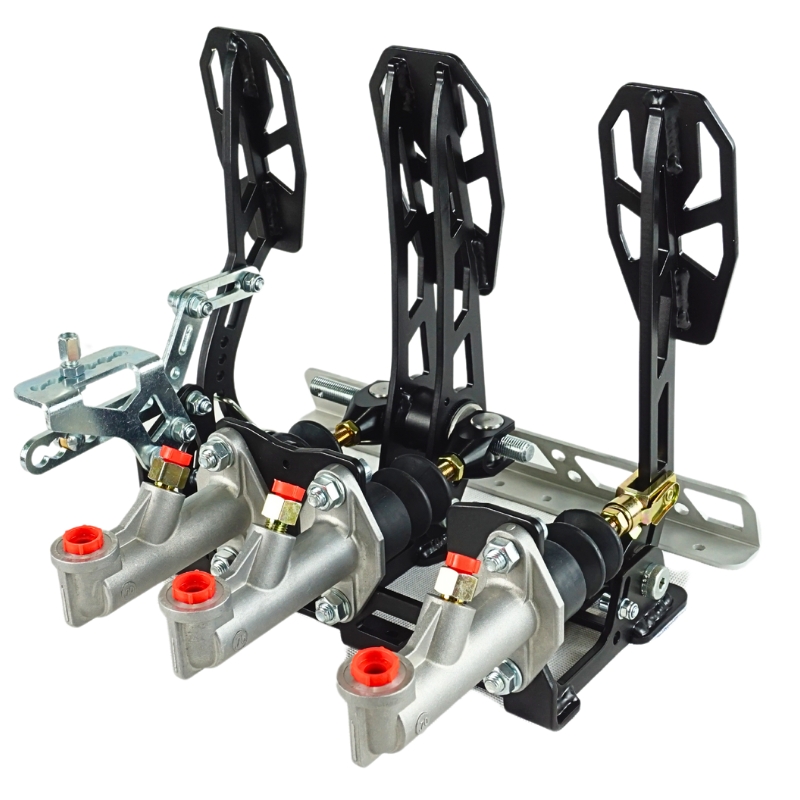

-The brake pedal for double master cylinders and balance bar. The pedal ratio is 5:1.

-The balance bar (included with the pedalbox) is 7/16”- 20 UNF thread to provide the maximum stiffness. The master cylinders connections are 5/16”- 24 UNF, for Wilwood or Girling master cylinders.

-The clutch pedal is hydraulic, for master cylinder.

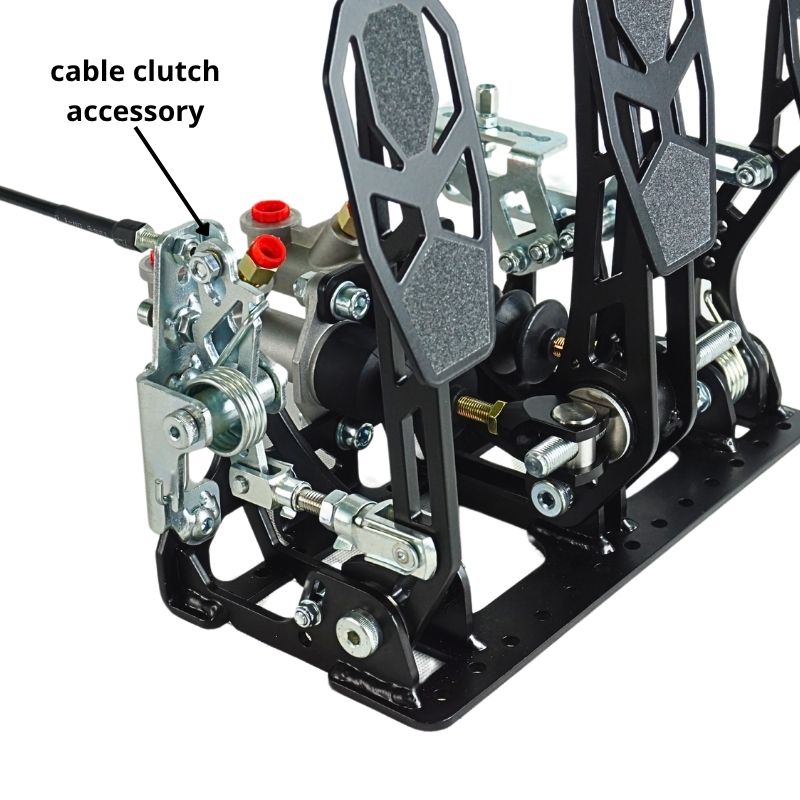

-Possibility to assemble Cable clutch accessory Pedalbox RPB0001 (ref. RPBAC05) to have cable clutch.

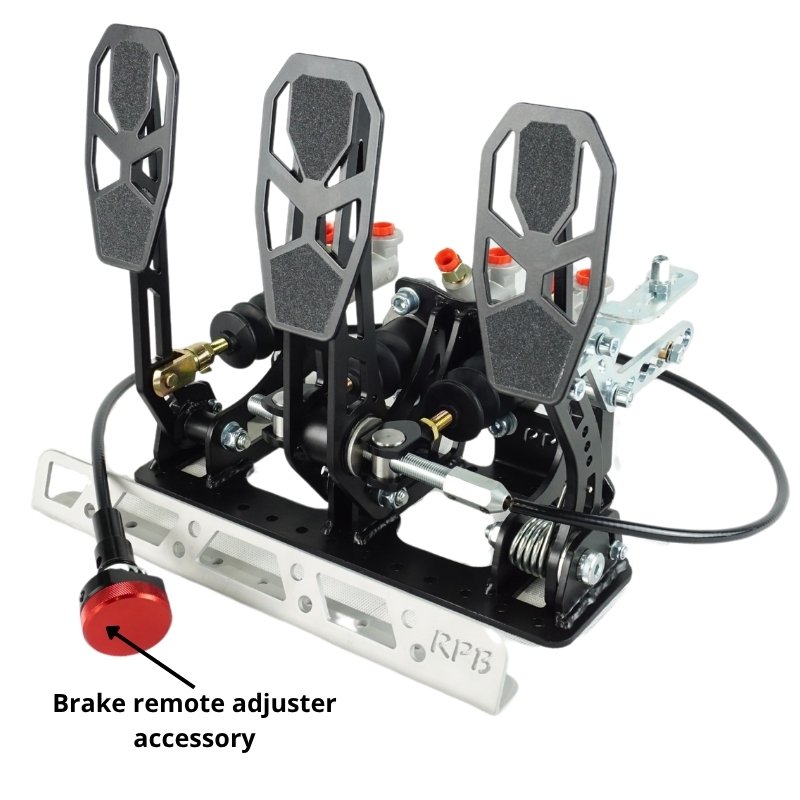

-Possibility to assemble Brake remote adjuster (7/16 UNF) (ref. RPBAB03) to control the brake balance from the cockpit.

-All the pedals have anti-slip surface.

-The pedalbox weight is 3,25 kg without master cylinders, and 4,45 kg with master cylinders.

-The pedal axes are manufactured with high quality steel to guarantee the maximum stiffness. Thanks to the nut torque adjustment it is possible to regulate the lateral movement of the pedals.

-All the components have anticorrosion coating to allow the maximum durability.

-The footrest support allows a comfortable driving position.

-Master cylinders are sold separately.

-Available in 2 colours, grey (ref. RPB0001) and black (ref. RPB0001B).
