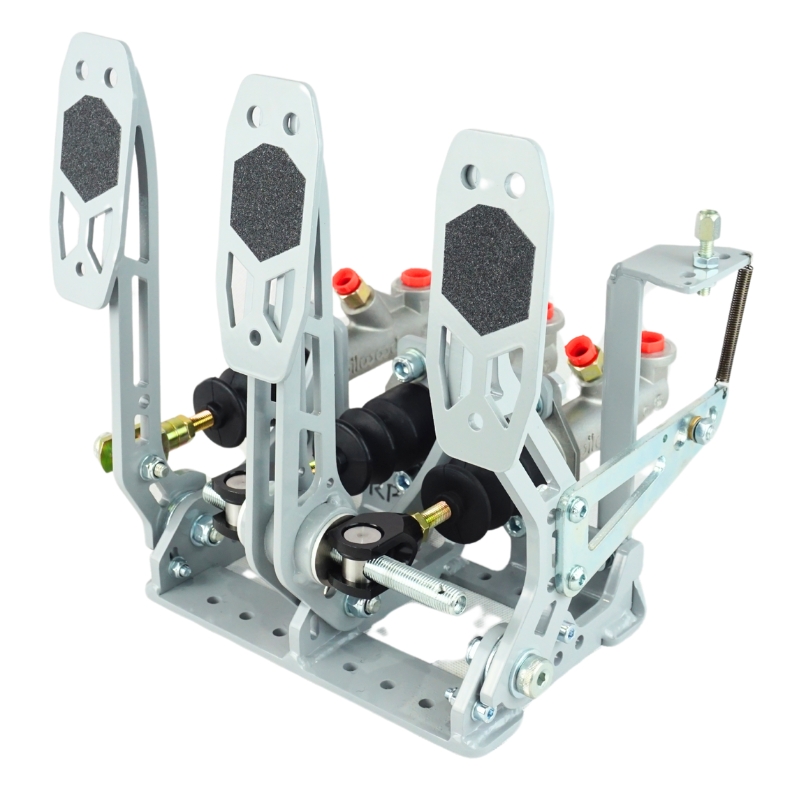

Pedalbox Eco Class

Description

-The throttle pedal has an adjustable cable puller. The pedal rotation angle and the cable stroke are adjustable.

-The brake pedal for double master cylinders and balance bar. The pedal ratio is 5:1.

-The balance bar (included with the pedalbox) is 7/16”- 20 UNF thread to provide the maximum stiffness. The master cylinders connections are 5/16”- 24 UNF, for Wilwood or Girling master cylinders.

-The clutch pedal is hydraulic, for master cylinder.

-Possibility to assemble Cable clutch accessory Pedalbox RPB0006 (ref. RPBAC03) to have cable clutch.

-Possibility to assemble Brake remote adjuster (7/16 UNF) (ref. RPBAB03) to control the brake balance from the cockpit.

-All the pedals have anti-slip surface.

-The Pedalbox Eco Class weight is 2.8 kg without master cylinders, and 3.5 kg with master cylinders.

-All the components have anticorrosion coating to allow the maximum durability.

-Master cylinders are sold separately.

-Available Pedalbox Eco Class in 2 colours, grey (ref. RPB0006) and black (ref. RPB0006B).
