SERVO REPLACEMENT BMW E36

Servo replacement BMW E36

Name: Servo replacement BMW E36
SKU: RPBS003
Availability: OutOfStock

Sin stock

Reference: RPBS003

292,00 € (incl. VAT)

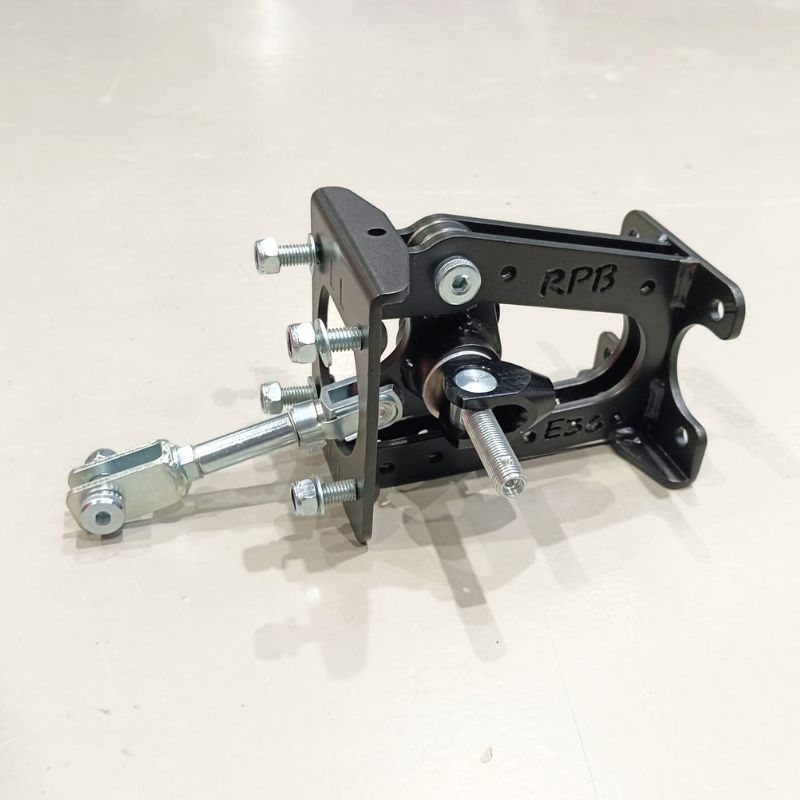

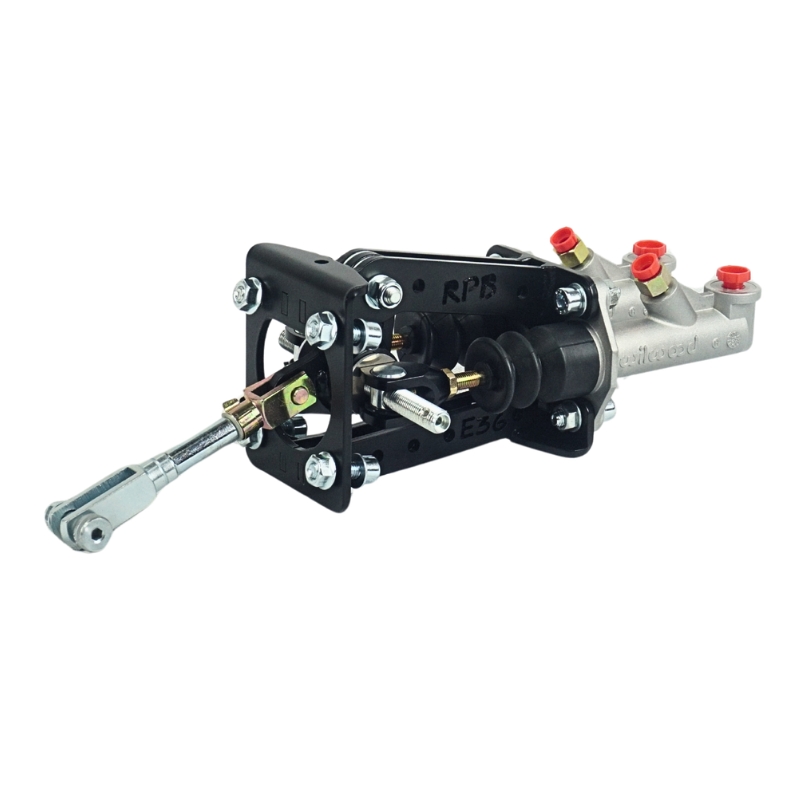

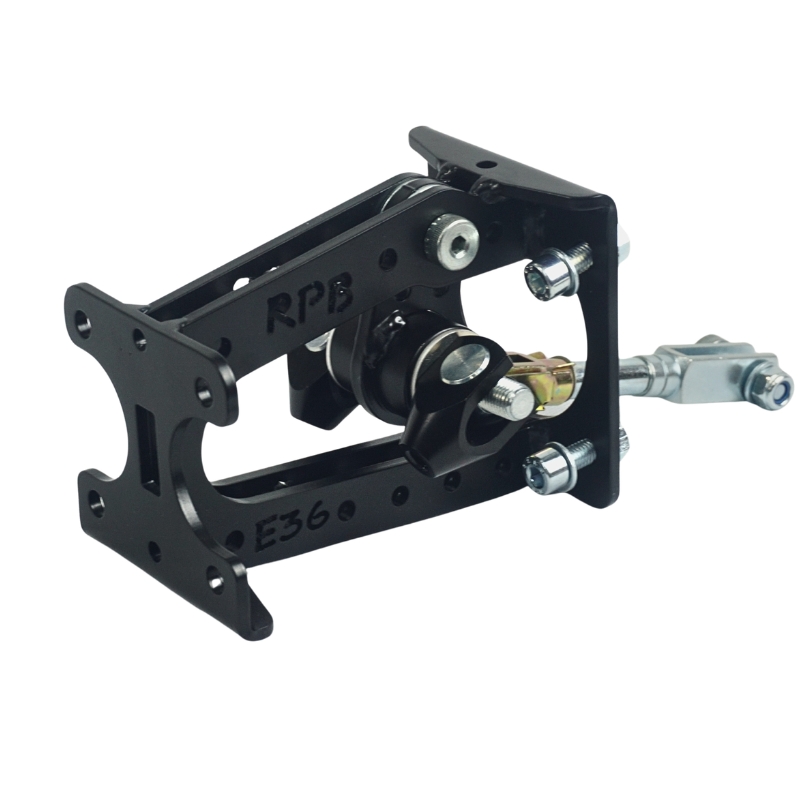

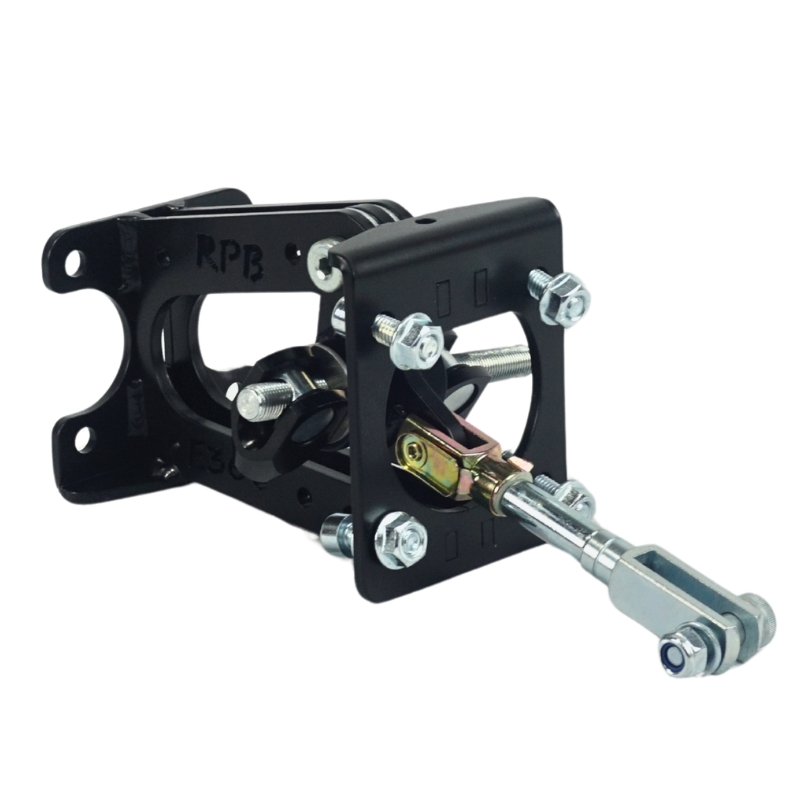

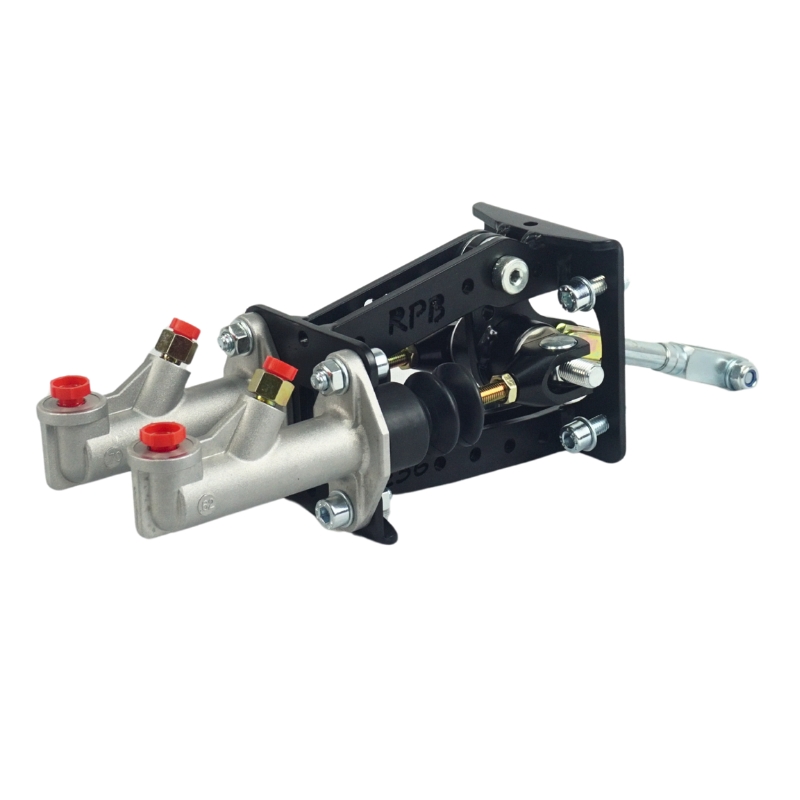

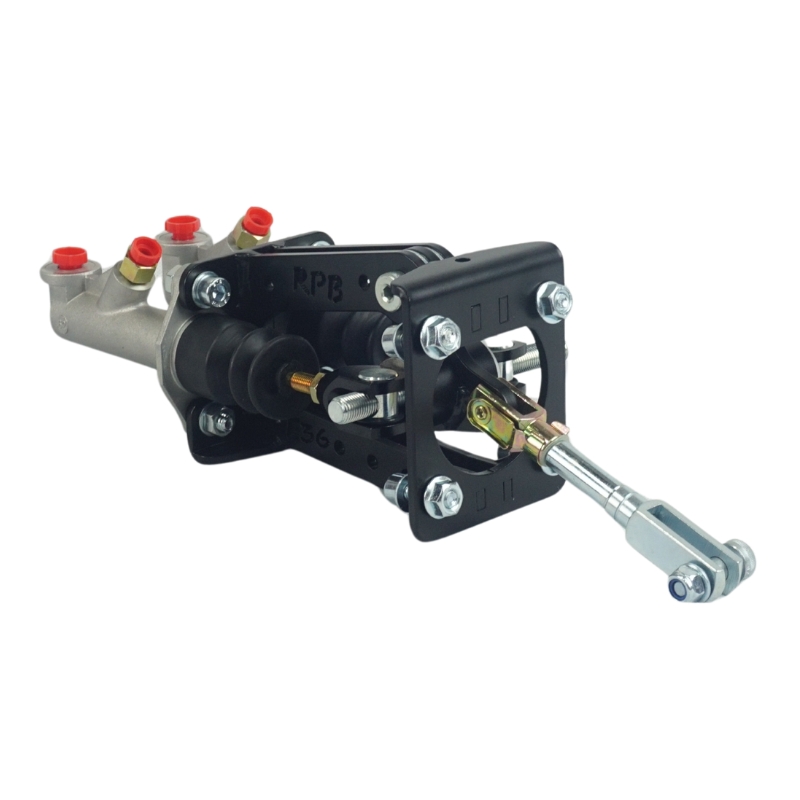

Servo replacement for BMW E36 – Replace the original brake booster with this compact and reliable servo delete kit. Designed for motorsport use, it improves pedal feel and gives more precise brake modulation.

Allows the use of dual master cylinders with fully independent front and rear brake circuits. The brake balance between both axles can be adjusted via the balance bar, making it an ideal setup for track and drift applications.

The Servo Replacement is manufactured with steel welded parts, with a lightweight design to improve the stiffness – weight ratio.

Custom product

Total: 292,00 €

1. Front master cylinder

Wilwood Master cylinder

Internal diameter:

0,00 € (incl. VAT)

OEM Master cylinder

Internal diameter:

0,00 € (incl. VAT)

2. Rear master cylinder

Wilwood Master cylinder

Internal diameter:

0,00 € (incl. VAT)

OEM Master cylinder

Internal diameter:

0,00 € (incl. VAT)

3. Brake remote adjuster

Brake remote adjuster (7/16 UNF) - 51,24 €

4. Fluid reservoirs + bracket

Fluid reservoirs + bracket

Number reservoirs:

0,00 € (incl. VAT)

Out of stock

SKU: RPBS003 Category: Servo Replacements

Description

-The Servo replacement has double master cylinders and a balance bar, to regulate the front and rear braking.

-The balance bar (included with the servo replacement) is 7/16”- 20 UNF thread to provide the maximum stiffness. The master cylinders connections are 5/16”- 24 UNF, for Wilwood or Girling master cylinders.

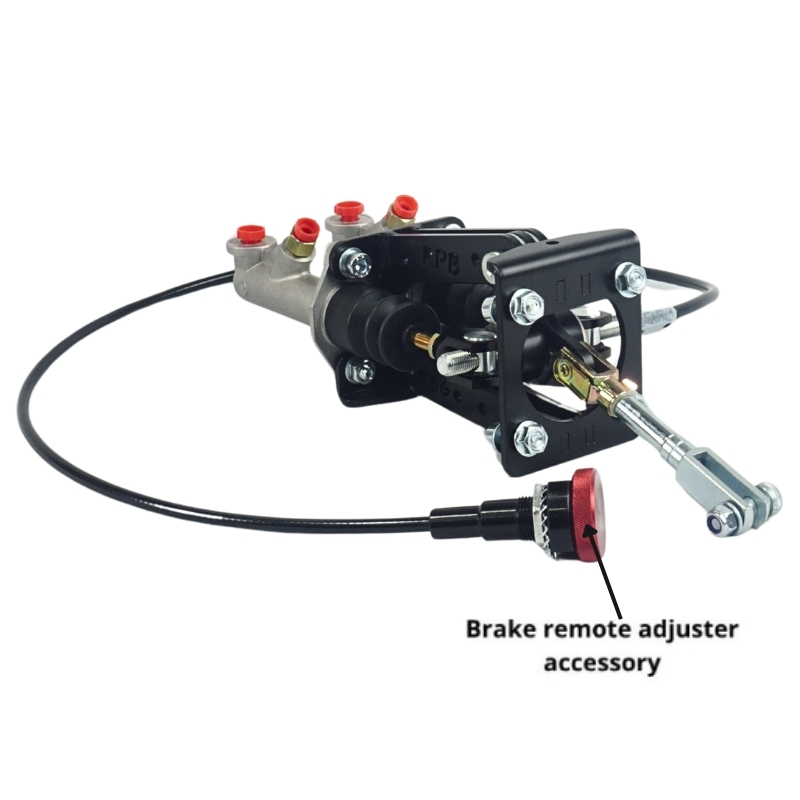

-Possibility to assemble Brake remote adjuster (7/16 UNF) (ref. RPBAB03) to control the brake balance from the cockpit.

-Possibility to install Brake Light switch banjo 3/8 UNF (ref. RPBAB12) in the master cylinder, for the brake light.

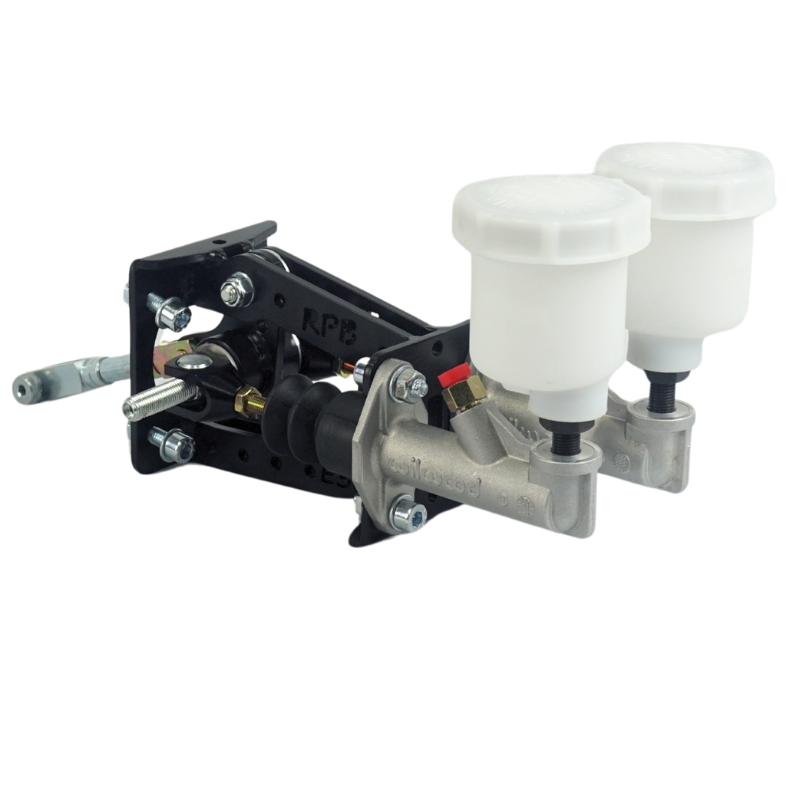

-Possibility to install the Fluid reservoirs (ref. RPBAD02) directly in the master cylinders, or independently.

-The weight is 1,4 kg without master cylinders and 2,2 kg with master cylinders.

-The mounting points are 4 M8 metric screws.

-Master cylinders are sold separately.

-All the components have anticorrosion coating to allow the maximum durability.

-Not homologated for street use.

Additional information

Weight	2,5 kg
